Can Carbon Fiber Tubes Be Drilled?
Before carbon fiber pipes are applied in mechanical systems, secondary processing—such as cutting, drilling, and joining—is often necessary. However, carbon fiber itself is hard and brittle, making secondary processing somewhat challenging. Some companies may have concerns when purchasing 3k carbon fiber tubes: Can carbon fiber be drilled? Does drilling affect the strength of roll wrapped carbon fiber composite tubes? Let’s address these questions one by one.
Basic Characteristics of Customized Carbon Fiber Tubes and Drilling Requirements
Carbon fiber round tubes are renowned for their high strength, lightweight properties, and excellent corrosion resistance, making them widely used in aerospace, automotive, sports equipment, and other industries. In practical applications, drilling is often required to meet specific connection, installation, or functional needs. Therefore, understanding the drillability of high strength carbon fiber tubes and the correct drilling methods is crucial.
Can Full Carbon Fiber Tubes Be Drilled?
The answer is yes. Carbon fiber tubes are made from composite materials, resembling laminated sheets before rolling. Although they are highly durable, they contain numerous gaps between layers. While drilling is possible, it presents certain challenges.
Analysis of the Drillability of Carbon Fiber Tubing
Carbon fiber tubes are composed of carbon fibers and resin matrix materials combined through specific processes. Their unique physical structure provides excellent mechanical properties but also poses challenges for drilling. From a practical standpoint, carbon fiber tubes can indeed be drilled, but the following points must be considered:
1. Selection of drilling locations: Avoid drilling in bent or high-stress concentration areas to prevent compromising the tube’s overall strength and stability.
2. Control of drilling parameters: Due to the hardness of carbon fiber, drilling speed and feed rate must be carefully managed to prevent overheating and damage to the resin matrix.

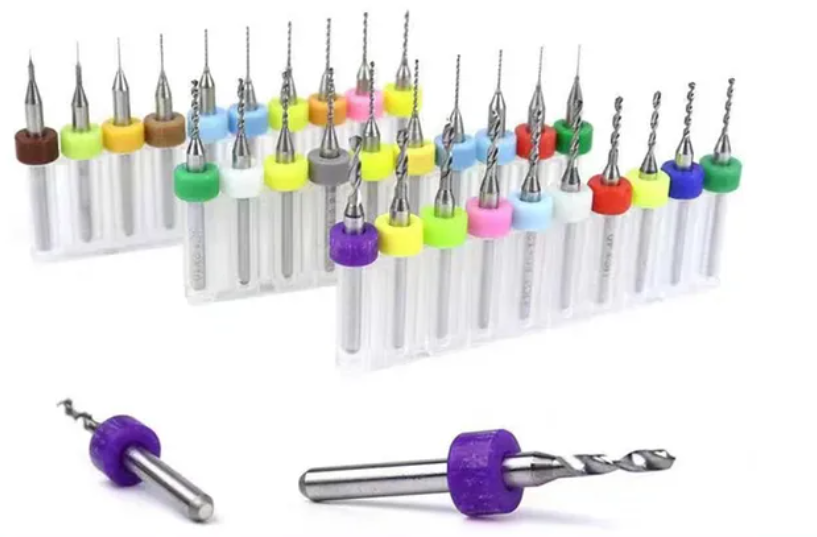

Choosing the right drill bit is critical for milling carbon fiber tubes. Below are some recommended drill bits and usage considerations:
1. Carbide drill bits: These offer high hardness and wear resistance, making them suitable for carbon fiber tubes. Proper cooling and lubrication should be maintained to extend the bit’s lifespan.
2. Diamond-coated drill bits: The extreme hardness of diamond coatings reduces friction and heat generation during drilling. However, diamond-coated bits require strict adherence to manufacturer-recommended conditions and operating methods.
In addition to selecting the right drill bit, the following practical tips should be observed when drilling carbon fiber tubes:
1. Pre-mark drilling positions to ensure accuracy and consistency.
2. Use specialized clamps or fixtures to secure the tube for stable drilling.
3. Adjust drill speed and feed rate based on the tube’s thickness and diameter for optimal results.
4. Regularly inspect drill bit wear and replace severely worn bits promptly.
Through the above analysis and recommendations, we conclude that carbon fiber tubes can indeed be drilled—provided the right drill bits are selected and drilling parameters are strictly controlled. Proper techniques not only preserve the tube’s integrity and performance but also improve efficiency and reduce costs. Therefore, in practical applications, the appropriate drilling solution should be chosen based on specific needs, following relevant operational standards.
Carbon fiber composites are inherently strong, but during manufacturing, they undergo high-temperature thermal compression molding. This process results in a high-strength yet brittle tubular product. During drilling, bit wear, cutting torque, and heat generation can cause delamination and tearing in the carbon fiber tube.
Delamination and tearing most commonly occur on the outermost layer at the drill exit side. The primary defect arises when the axial force decline rate is slower than the material strength decline rate near the drill exit, causing uncut material to break prematurely and tear. To mitigate this, the feed rate should be reduced as the drill nears the exit, ensuring the cutting force remains below the critical threshold for defect formation. Additionally, insufficient drill sharpness can lead to incomplete cutting, resulting in exit-side tearing and burrs.
Drilling carbon fiber tubes facilitates component fixation, but it introduces discontinuities in the material. While the immediate vicinity of the hole may experience localized strength reduction, the overall performance of the tube remains largely unaffected. However, delamination and tearing caused by poor drilling practices can significantly degrade performance.
To minimize drilling-induced damage, two key aspects must be addressed:
1. Drill bit selection: High-speed steel (HSS) bits offer a good balance of cost and performance, while cobalt bits provide better wear resistance and heat dissipation. As the saying goes, "A craftsman must first sharpen his tools."
2. Process optimization: Skilled technicians, through extensive experience, can precisely control feed rates and use appropriate tools to greatly enhance drilling efficiency.
Carbon fiber tubes can indeed be drilled, and the impact on strength is negligible—provided the manufacturer uses high-quality tools and employs skilled technicians. Companies like Dronecarbon excel in both areas, ensuring optimal drilling results.
