The Power of Lightweight Strength: Carbon Fiber Tubes for Innovative Design
In the fast-paced world of drone technology, weight and strength are critical factors. Twill Matte 3k carbon tube offer a unique blend of both, making them the ideal material for drone arms and frames. They provide the lightweight advantage needed for extended flight times and increased payload capacity, while maintaining exceptional strength and rigidity for stability and durability.
Carbon Fiber Tube Production Method:
There are several methods for producing carbon fiber tubes, each with its own advantages and applications. The two primary techniques are roll-wrapping and mold press. This is also our main carbon fiber tube production method.
1. Roll-Wrapping:
Roll-wrapping is a widely used technique that involves wrapping pre-impregnated carbon fiber around a metal mandrel. This method allows for precise control over the fiber orientation and is ideal for producing high-performance tubes with specific mechanical properties. The process can be performed using either woven fabrics or unidirectional prepreg materials
Process Steps:
1)Mandrel Preparation: Use a metal mandrel of the correct diameter, coated with a release agent.
2)Wrapping: Wrap prepreg carbon fiber around the mandrel at specified angles.
3)Consolidation: Apply shrink tape over the wrapped fibers to ensure tight consolidation.
4)Curing: Place the assembly in an oven to cure, allowing the shrink tape to contract and compress the layers against the mandrel.
Advantages: This process allows for large production runs, ensuring consistent quality and relatively low cost per unit.
Limitations: The tube rolling method is primarily suitable for creating simple shapes, like cylindrical or conical tubes. This is why our carbon fiber round tubes are made using the roll-wrapped process.
2. Compression Molding Method:
Compression molding is a widely used technique for producing carbon fiber tubes, particularly when high strength and precise dimensions are required. This method involves placing sheets of carbon fiber prepreg (pre-impregnated with resin) into a heated mold. The mold is then closed, applying pressure to shape and cure the material.
Process Steps:
1)Preparation of Materials: Use a metal mandrel of the correct diameter, coated with a release agent.
a. Carbon fiber prepreg sheets are cut to size based on the desired dimensions of the tube.
b. A release agent is applied to the mold to facilitate easy removal of the finished product.
2)Mold Setup:
a. The mold is designed to the specifications of the tube, typically consisting of two halves that can be tightly closed.
b. The prepreg sheets are layered inside the mold according to the required thickness and orientation.
3)Heating and Pressing:
a. The mold is heated to activate the curing process of the resin in the prepreg.
b. Pressure is applied through the mold closure, ensuring that the prepreg conforms to the shape of the mold and that excess resin is expelled.
4)Curing:
a. The combined heat and pressure cure the resin, bonding the carbon fibers together and forming a solid structure.
b. This step may take several minutes to hours, depending on the specific resin system used.
5)Cooling and Demolding:
a. After curing, the mold is allowed to cool before being opened.
b. The finished carbon fiber tube is carefully removed from the mold.
6)Finishing:
a. Any excess material or imperfections are trimmed away.
b. Additional surface treatments may be applied for aesthetic or functional purposes.
Advantages:

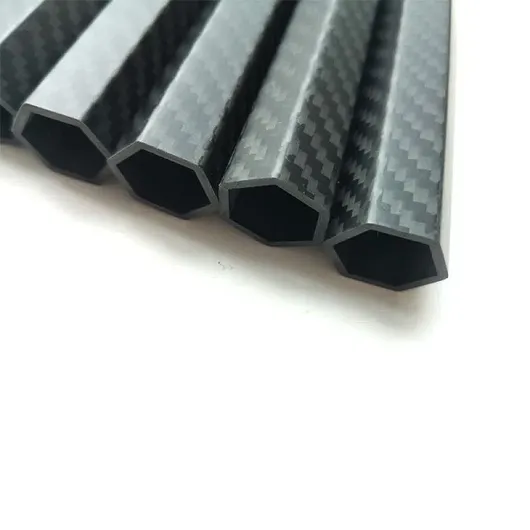

a. Complex Shapes: It can accommodate complex geometries that may be difficult to achieve with other methods. Molding offers much more flexibility in creating intricate shapes, making it ideal for tubes with unique curves, angles, or even internal features.
b. High Strength: Compression molding produces strong, lightweight components ideal for demanding applications.
c.Precision: The method allows for tight tolerances and consistent quality across batches.
Limitations: This method requires specialized molds for each unique tube design, which can be costly.
The Finishing Touch:
Once the tube is formed, it's time for finishing touches. This may include trimming, sanding, or surface treatment to meet specific performance requirements.
Choosing the Right Process:
Ultimately, the best production method for carbon fiber tubes depends on your application's specific needs. If you require a high volume of simple, strong tubes, then the tube rolling method is likely the most efficient. For complex shapes and unique designs, molding offers superior flexibility.
The Advantages of Carbon Fiber Tubes: A Comprehensive Overview
High Strength and Stiffness: Carbon fiber tubes offer exceptional strength and stiffness, surpassing traditional materials like aluminum or steel in many applications.
Lightweight Design: The lightweight nature of carbon fiber tubes allows for the construction of lighter and more efficient products, improving performance and reducing energy consumption.
Corrosion Resistance: Carbon fiber is naturally resistant to corrosion, making it a durable and reliable material for various environments.
Versatile Manufacturing: Carbon fiber tubes can be easily molded, machined, and fabricated into complex shapes and components.
Sustainable Choice: Carbon fiber production is becoming increasingly sustainable, with advancements in recycling and lower environmental impact.
Beyond Drone Applications: Carbon Fiber Tubes Shape Innovation:
Robotics: The strength and lightweight properties of carbon fiber tubes make them ideal for robotic arms, manipulators, and structures that require precise movements and high load capacity.
Automotive: Carbon fiber tubes are increasingly used in high-performance vehicles, contributing to reduced weight, improved handling, and enhanced fuel efficiency.
Aerospace: In aircraft construction, carbon fiber tubes offer superior strength, stiffness, and lightweight properties, essential for achieving optimal performance and efficiency.
Sporting Goods: Carbon fiber tubes find widespread use in sporting equipment, including bicycles, golf clubs, tennis rackets, and fishing rods, enhancing performance and durability.
Medical Devices: The biocompatibility and lightweight nature of carbon fiber tubes make them ideal for medical devices, including prosthetic limbs, surgical instruments, and medical imaging equipment.
Why Choose Custom Carbon Fibre Tube for Your Drones?

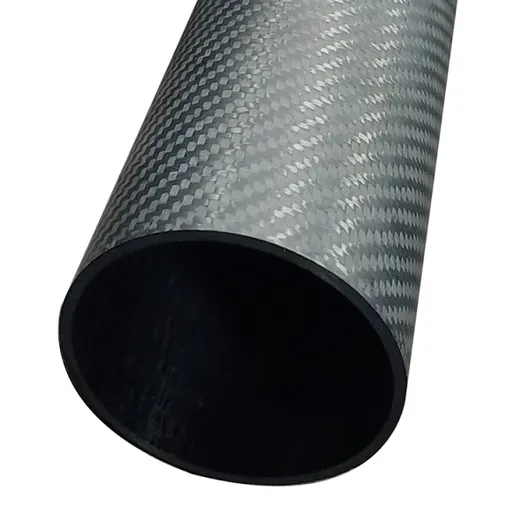

Unmatched Strength-to-Weight Ratio: Hollow Carbon Fiber Round Tubes are incredibly strong for their weight, allowing you to build lighter and more efficient drones without compromising structural integrity.
Enhanced Flight Performance: Lightweight construction translates to improved maneuverability, increased agility, and longer flight times.
Increased Payload Capacity: With a lighter frame, your drone can carry more equipment, sensors, or other payloads.
Exceptional Rigidity: Carbon fiber pipe provide superior stiffness, minimizing vibrations and enhancing the overall stability of your drone.
Corrosion Resistance: Carbon fiber is naturally resistant to corrosion, ensuring long-term performance even in challenging environments.
Customizable Solutions: We offer a wide range of 3K custom top quality carbon fiber tubing, allowing you to customize the shape, select the perfect size, wall thickness, and material grade for your specific drone design.
The Advantages of Carbon Fiber for Drone Frame Construction:
Enhanced Aerodynamics: Carbon fiber's inherent stiffness and low weight minimize drag, improving the drone's overall aerodynamic efficiency.
Reduced Vibrations: The superior rigidity of high strength full carbon fiber tubes helps reduce vibrations and noise, enhancing the overall flight experience.
Precision Machinability: Our machining carbon fiber tube are easily machinable using CNC technology, allowing you to create precise shapes and complex components for your drone arms and frame.
CNC Machining for Precision Carbon Fiber Drone Parts:
We offer precision CNC machining services for high moduls carbon fiber tubes, allowing you to create custom components with tight tolerances and intricate details. Our state-of-the-art equipment ensures the highest quality and accuracy, meeting the demanding specifications of the drone industry.
Partner with Us for Unparalleled Performance:
Dronecarbon is a trusted provider of high-quality carbon fiber tubes, dedicated to empowering innovation across diverse industries. Our commitment to excellence is reflected in our comprehensive services:
Custom Engineering to Your Exact Specifications: We offer custom-designed carbon fiber tubes to meet the precise requirements of your project. From the size and thickness of the tube to the length and desired shape, our engineers work with you to achieve the optimal solution for your application.
High-Precision CNC Machining for Intricate Components: We utilize high-precision CNC machines to process carbon fiber tubes with exceptional accuracy. Whether you require drilling holes, creating slots, or machining complex shapes, our expertise ensures precise execution according to your detailed drawings. We achieve an accuracy of +/-0.1mm, guaranteeing a flawless fit for your components.
A Wide Range of Carbon Fiber Materials to Meet Your Needs: We typically utilize T300 3K carbon fiber, renowned for its balance of strength and affordability. However, we also offer a selection of other high-performance grades, including T700, T800, M40, M50, and others, along with various weave patterns like 1K, 6K, and 12K. Our technical team will work with you to determine the ideal material and weave pattern to achieve the desired strength, stiffness, and weight properties for your application.
Industry Expertise and Technical Support: Our team of experienced engineers and technicians provides dedicated support and guidance throughout your project. We are committed to helping you achieve the best possible outcome, offering technical advice, material selection recommendations, and customized solutions tailored to your unique needs.
FAQ:
General Questions:
What is the difference between carbon fiber tubes and other materials like aluminum or steel?
Carbon fiber tubes are significantly lighter than aluminum or steel tubes with comparable strength. They offer excellent strength-to-weight ratios, making them ideal for applications where weight reduction is crucial.
What are the advantages of using carbon fiber tubes?
Advantages include high strength-to-weight ratio, corrosion resistance, high stiffness, dimensional stability, and excellent fatigue resistance.
What are the typical applications of carbon fiber tubes?
Carbon fiber tubes are used in various industries, including aerospace, automotive, sports equipment, robotics, and construction. Some common applications include aircraft components, racing car chassis, bicycle frames, fishing rods, and wind turbine blades.
How strong and durable are carbon fiber tubes?
Carbon fiber tubes are extremely strong and durable, with high tensile strength and impact resistance. However, their strength can be affected by factors like manufacturing quality, loading conditions, and environmental exposure.
How do I choose the right size and diameter of carbon fiber tubes for my project?
The selection depends on your specific application and requirements. Consider factors like load bearing capacity, desired stiffness, weight limitations, and available space. It's crucial to consult with technical specifications and engineering drawings for accurate sizing.
Material & Properties:
What is the tensile strength of carbon fiber tubes?
The tensile strength of carbon fiber tubes can range from 300,000 psi to 1,000,000 psi, depending on the specific type of carbon fiber and manufacturing process.
What is the modulus of elasticity of carbon fiber tubes?
The modulus of elasticity (Young's modulus) of carbon fiber tubes can range from 20 to 40 million psi, making them very stiff and resistant to deformation.
What is the density of carbon fiber tubes?
The density of carbon fiber tubes is typically around 0.055 to 0.065 pounds per cubic inch, significantly lower than steel or aluminum.
What is the weight-to-strength ratio of carbon fiber tubes?
Carbon fiber tubes have an exceptional weight-to-strength ratio, which is why they are favored in applications where weight reduction is critical.
Are carbon fiber tubes resistant to corrosion?
Yes, carbon fiber tubes are inherently resistant to corrosion from most chemicals and environments. They are less susceptible to rust and other forms of degradation than steel or aluminum.
Manufacturing & Production:
What is the manufacturing process for carbon fiber tubes?
Carbon fiber tubes are typically manufactured using a process called filament winding, where carbon fiber tows are wound around a mandrel, impregnated with resin, and cured under heat and pressure.
How are carbon fiber tubes produced in different sizes and shapes?
The size and shape of carbon fiber tubes are determined by the mandrel used during the filament winding process. Different mandrel designs allow for various diameters, lengths, and cross-sectional profiles.
Are carbon fiber tubes available in different finishes (e.g., polished, matte)?
Yes, carbon fiber tubes can be finished in various ways, including polished, matte, or textured surfaces. The finish can affect the appearance, surface properties, and overall performance of the tube.
What is the typical lead time for production of carbon fiber tubes?
Lead times for custom-made carbon fiber tubes can vary depending on size, quantity, and specific requirements. However, manufacturers often have standard sizes available for quicker delivery.
Pricing & Availability:
What is the pricing for carbon fiber tubes?
Pricing for carbon fiber tubes varies based on factors like diameter, length, quantity, material grade, and finish. It's best to contact a supplier for a specific quotation.
How does the price vary based on size, diameter, and quantity?
Generally, larger diameter and longer tubes tend to be more expensive. Bulk orders typically result in discounted pricing.
Where can I purchase carbon fiber tubes?
Carbon fiber tubes are available from specialized suppliers, distributors, and online retailers. Some manufacturers also offer direct sales.
Do you offer any discounts for bulk orders?
Many suppliers offer discounts for bulk orders to encourage larger purchases. It's recommended to contact the supplier directly to inquire about available discounts.
Technical & Application:
What are the recommended load limits for carbon fiber tubes?
Load limits for carbon fiber tubes vary depending on the specific tube's properties and design. It's crucial to consult with technical specifications and engineering drawings to determine safe load limits.
How do I connect or join carbon fiber tubes?
Carbon fiber tubes can be joined using various methods, including adhesive bonding, mechanical fasteners, or specialized joining techniques. The method chosen depends on the application and desired strength.
Contact Us Today:
Ready to take your drone designs to the next level? Contact our team today to discuss your requirements and explore how our carbon fiber tubes can enhance your drone's performance.
