Carbon fiber sandwich plates have revolutionized engineering, offering an unparalleled combination of strength, stiffness, and lightweight design. This innovative material is changing the way we build everything from aircraft to cars, wind turbines to bridges. This page will explore the world of carbon fiber sandwich plates, outlining their construction, benefits, applications, and why they are the go-to solution for engineers seeking advanced materials.
1. What are carbon fiber sandwich plates:
A carbon fiber sandwich plate is a type of composite material used in a wide range of applications, particularly in aerospace, automotive, and marine industries. It combines the strength and stiffness of carbon fiber with a lightweight core material to achieve exceptional structural performance.

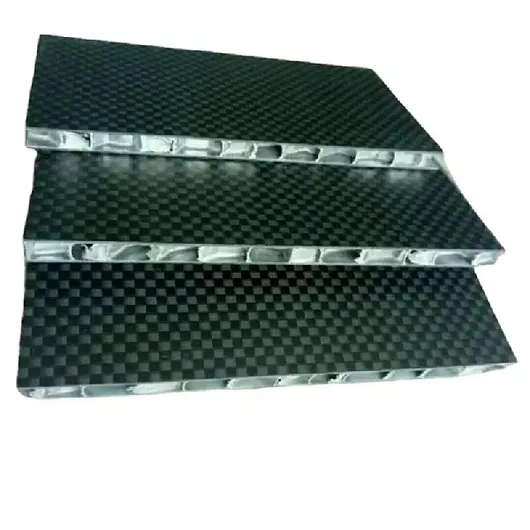

Carbon fiber sandwich plates consist of two thin, strong carbon fiber face sheets bonded to a lightweight core material. This core is typically a honeycomb structure, but can also be foam or other materials, separates the face sheets, creating a strong, rigid structure that is significantly lighter than traditional materials like aluminum or steel. The core material is strategically chosen to optimize the plate's properties based on the application.
2. Construction:
It consists of three main layers:
Face Sheets:
Material: These sheets are typically made from woven and unidirectional carbon fiber prepregs. These prepregs are composed of carbon fibers impregnated with a thermosetting resin.
Manufacturing: The prepregs are laid out in specific orientations (often in multiple layers) to achieve the desired mechanical properties. These layers are then cured under heat and pressure, resulting in a strong and rigid face sheet.
Function: The face sheets provide the sandwich plate's primary structural strength, stiffness, and load-bearing capacity. They are also responsible for resisting bending and shear forces.
Core:
Function: The core is the heart of the sandwich plate. It provides a lightweight structure that separates the face sheets. The core acts as a load-bearing element, contributing to the plate's overall stiffness and strength. It also adds significant impact resistance and contributes to the plate's stability.
Material Selection: The choice of core material is crucial for tailoring the sandwich plate's properties. Commonly used core materials include:
Honeycomb: Nomex, aluminum, and PVC honeycomb cores are popular due to their high strength-to-weight ratio, excellent impact resistance, and low density.
Foam: Polystyrene and polyurethane foams are lightweight and offer good thermal insulation. However, they might not be as strong or stiff as honeycomb cores.
Other: Depending on the specific application, other core materials like wood, balsa, or even specialized composite cores can be used.
Adhesive: A strong adhesive layer bonds the face sheets to the core, ensuring a strong and durable bond.
How Are Carbon Fiber Sandwich Panels Made?
The manufacturing process for carbon fiber sandwich panels involves several steps:
Core Material Preparation: The chosen core material, be it honeycomb, foam, or balsa wood, is carefully prepared and cut to the desired size and shape.
Face Sheet Layup: Carbon fiber prepreg sheets, which consist of carbon fibers impregnated with resin, are meticulously laid up in layers to achieve the desired strength and stiffness properties.
Layup and Curing: The core material is sandwiched between the face sheets, and the entire assembly is placed in a mold. The mold is then heated under pressure, allowing the resin to cure and bond the face sheets to the core.
Finishing: Once cured, the panels undergo finishing processes like machining, sanding, and painting to meet specific requirements.
Why Choose Carbon Fiber Sandwich Panels?
Carbon fiber sandwich panels are constructed by bonding two thin, ultra-strong carbon fiber face sheets to a lightweight core material. This core, often made of honeycomb, foam, or balsa wood, creates a rigid, lightweight structure far superior to traditional materials like aluminum or steel.
3. Benefits Of Carbon Fiber Sandwich Panels:
Here's a more detailed breakdown of the advantages:
High Strength-to-Weight Ratio: The combination of strong, stiff carbon fiber face sheets and a lightweight core material results in an incredibly high strength-to-weight ratio. This makes carbon fiber sandwich plates ideal for applications where weight reduction is critical, such as aerospace, automotive, and marine.
High Stiffness: The sandwich structure significantly amplifies the inherent stiffness of the carbon fiber. The core acts as a spacer, preventing the face sheets from bending or flexing under load. This results in high resistance to bending and deformation, making these plates suitable for applications requiring high stiffness, like aircraft wings and wind turbine blades.
Excellent Fatigue Resistance: The sandwich structure distributes stress evenly throughout the plate, reducing stress concentrations and improving fatigue resistance. This makes carbon fiber sandwich plates highly durable and resistant to repeated loading cycles, which is essential for aerospace and marine applications.
Good Thermal and Acoustic Properties: The core material can be chosen to offer specific thermal and acoustic insulation properties. Honeycomb cores with a closed-cell structure are particularly effective at reducing heat transfer and noise transmission. This is valuable for applications like aircraft cabins and marine vessels.
Design Flexibility: The sandwich plate construction offers excellent design flexibility. The face sheet layup and core material can be tailored to achieve specific structural and functional properties. This allows for the creation of sandwich plates with various shapes, sizes, and performance characteristics to meet unique design requirements.
Additional Advantages:
Impact Resistance: The core material absorbs impact energy, making sandwich plates more resistant to damage from impacts or collisions.
Corrosion Resistance: The carbon fiber face sheets are inherently resistant to corrosion, making these plates suitable for use in harsh environments.
Machinability: Depending on the core material, sandwich plates can be readily machined to create complex shapes or integrate features like mounting points or holes.
Recyclability: While it is a challenge, there are ongoing developments in recycling carbon fiber composites, offering potential environmental benefits.
Applications of Carbon Fiber Sandwich Panels
Carbon fiber sandwich panels are making a difference in numerous industries:
Aerospace: Aircraft wings, fuselages, tail sections, and other structural components.
Automotive: High-performance vehicles, racing cars, and lightweight components.
Marine: Boat hulls, rudders, and other marine structures.
Wind Energy: Wind turbine blades and supporting structures.
Construction: Lightweight and strong building components, bridges, and architectural structures.
Sporting Goods: High-performance bicycles, golf clubs, and other sporting equipment.
Carbon Fiber Sandwich Panels vs. Aluminum Panels
While aluminum panels are often used in various applications, carbon fiber sandwich panels offer significant advantages:
Strength-to-Weight Ratio: Carbon fiber sandwich panels boast a much higher strength-to-weight ratio than aluminum panels, meaning they are stronger for the same weight. This translates to improved performance in applications like aircraft, vehicles, and sporting goods.
Stiffness: Carbon fiber sandwich panels are exceptionally stiff due to the core material, resulting in less bending and deformation under load. This makes them ideal for structures requiring high rigidity, like wind turbine blades and bridge components.
Impact Resistance: The core material in carbon fiber sandwich panels absorbs impact energy effectively, leading to greater resistance to damage from impacts or collisions compared to aluminum panels. This is critical for safety and reliability in demanding applications.
Corrosion Resistance: Carbon fiber face sheets are inherently resistant to corrosion, eliminating the need for extensive maintenance and making them suitable for use in harsh environments. Aluminum panels, on the other hand, are prone to corrosion over time, requiring protective coatings.
