Challenges and Solutions in Manufacturing Large Carbon Fiber Tubes

Introduction

Carbon fiber tubes are used in a lot of fields that need things to be strong, light, and well-built. Carbon fiber tubes are now a very important part of engineering. They are used in a lot of different things, like UAV drones, robots, aerospace structures, and systems for automating factories.

As technology gets better, more and more people want big carbon fiber tubes and tubes with a wide diameter. Companies that make drones, aerospace products, and robotic equipment are needing bigger and longer composite tubes to support structures that work well.

Making big carbon fiber tubes, on the other hand, is a lot harder than making regular-sized tubes. Making things gets harder as they get longer and wider.

This article will talk about the biggest problems with making big carbon fiber tubes and how engineers have fixed them.

Why Large Carbon Fiber Tubes Are Increasingly Important

The demand for large diameter carbon fiber tubes continues to grow across many advanced industries.

Some common applications include:

• UAV drones and long-range drone frames

• Aerospace structural components

• Robotic arms and automation equipment

• Telescopic structures

• High-performance industrial machinery

Carbon fiber tubes are stronger, lighter, and less likely to wear out than aluminum or steel. These benefits make them great for buildings that need to stay strong while keeping the weight of the whole system as low as possible.

For example, big UAV drones can have longer arms because they use big carbon fiber tubes. This keeps the structure stable and makes it less likely to shake while flying.

But it takes a lot of skill to make these big composite tubes.

Major Challenges in Manufacturing Large Carbon Fiber Tubes

Making large carbon fiber tubes is much harder than making regular-sized tubes. It gets a lot harder to keep the structure stable and the production steady as the diameter and length increase.

Here are some of the most common engineering problems that companies run into when they make big carbon fiber tubes and how they solve them.

1. Fiber Wrinkling During Layup

When making big carbon fiber tubes, one of the most common problems is that the fibers get wrinkled while they are being laid up.

Putting layers of carbon fiber prepreg or fabric around a mold is the most common way to make carbon fiber tubes. It's harder to keep each layer tightly packed as the tube gets bigger.

If the layers aren't pressed down hard enough, the material might not cure evenly. This could cause the outer fiber layers to loosen and get wrinkles. These wrinkles can make the structure not work as well as it should.

Solution

Manufacturers typically address this issue using several techniques:

• Layer-by-layer compaction, where each few layers are pressed and heated during the winding process

• Heat-shrink tape wrapping, where a high-temperature shrink tape is applied around the tube before curing to provide uniform external pressure

• Careful control of fiber tension and winding speed during the layup process

These methods help ensure the fibers remain tightly compacted throughout the curing cycle.

2. Deformation and Loss of Roundness

Keeping the roundness and straightness during the curing process is another big problem.

During curing, large carbon fiber tubes are put through a lot of heat. Long tubes may experience:

• Oval deformation

• Bending or warping

• Uneven dimensional accuracy

The longer and larger the tube, the more difficult it becomes to control these effects.

Solution

Manufacturers use very precise internal molds made of steel or aluminum to keep things from changing shape.

People often use aluminum mandrels to hold the tube up from the inside while it cures because they get bigger when they are heated. The mandrel gets bigger as the temperature goes up. Putting pressure on the tube wall keeps it from bending.

It's very important to carefully plan the mold if you want to make carbon fiber tubes that are very big and very accurate in size.

3. Wall Thickness Consistency and Resin Distribution

Large carbon fiber tubes often require thicker walls to maintain structural stiffness. However, thicker composite structures introduce additional challenges.

When the laminate becomes thicker, it becomes harder to ensure:

• Even resin distribution

• Complete fiber impregnation

• Minimal air voids

If resin distribution is uneven, certain areas may become weaker, which affects the overall mechanical performance of the tube.

Solution

To fix this issue, manufacturers do the following:

• The heat is controlled during curing so that the temperature stays the same all the way through the tube.

• Adjusted the winding pressure to make the fibers thicker.

• Pay close attention to the transition zones, which are the parts of the tube that get thicker or have joints.

These steps help make sure that the structural properties of big composite tubes are the same all the way down their length.

4. Mold Design and Manufacturing Cost

It can be very expensive to make molds for carbon fiber tubes with big diameters.

The molds need to be longer, stronger, and able to handle high curing temperatures as the tubes get bigger. When a mold is heated or cooled, thermal expansion can also change how accurate it is.

Also, very large tubes may require custom molds or segmented mold structures, which makes the process of making them even harder.

Solution

To make molds work better, manufacturers usually do the following:

• Using metals that can handle high temperatures, like steel or aluminum alloys

• Making molds that can be put together or taken apart for very large tubes

• Using high-precision machining to make sure the sizes don't change after thermal cycling

You need a well-designed mold system to make large composite tubes that are of high quality.

5. Demolding and Post-Processing Challenges

For long carbon fiber tubes, it can be surprisingly hard to get the finished tube out of the mold.

After curing, the composite structure may stick tightly to the mold surface, especially in long tubes where friction is a big problem.

If you don't take the tube out of the mold the right way, you could damage the surface or make it less accurate in size.

Solution

To solve this issue, manufacturers often use:

• Slightly tapered mandrel designs to make demolding easier

• High-performance release agents applied to the mold surface

• Hydraulic or mechanical demolding systems for long tubes

These techniques help ensure that even large carbon fiber tubes up to several meters long can be safely removed from the mold without damage.

Our Manufacturing Capability for Large Carbon Fiber Tubes

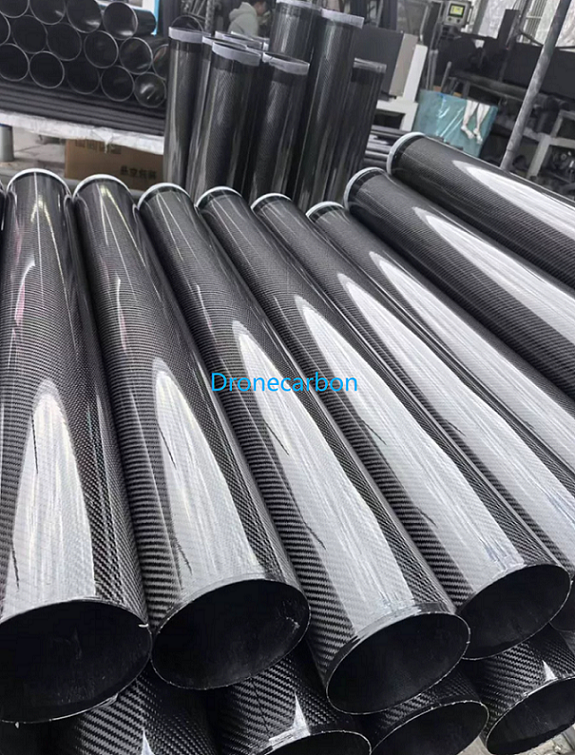

At our factory, we specialize in custom carbon fiber tubes for high-performance applications, especially for drone manufacturers and industrial equipment companies.

Our production capabilities include:

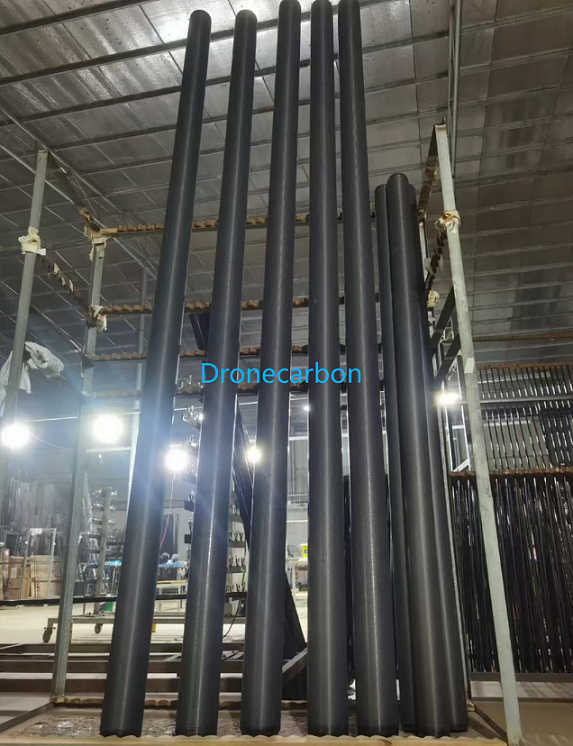

• Large diameter carbon fiber tubes up to 500 mm

• Maximum tube length up to 6 meters

• Monthly production capacity of tens of thousands of tubes

• 6 carbon fiber production lines

• almost 100 CNC cutting machines for precision machining

• Machining tolerance about ±0.2 mm

With over a decade of experience in carbon fiber tube manufacturing and CNC processing, we understand the strict quality requirements of industries such as UAV drones, robotics, and aerospace equipment.

Our team works closely with customers to develop custom carbon fiber tubes tailored to their specific structural needs.

Conclusion

Large carbon fiber tubes play a critical role in modern engineering applications, especially in industries that demand lightweight structures with exceptional strength.

However, manufacturing these tubes requires expertise in:

• Fiber layup design

• Curing process control

• Structural optimization

• Precision machining

With the right technology and experience, manufacturers can produce high-quality large diameter carbon fiber tubes that meet the demanding requirements of modern industries.

Let's Discuss Your Project

If you are developing UAV drones, robotic systems, or industrial equipment that require large carbon fiber tubes, our team would be happy to help.

We provide:

• Custom large carbon fiber tube manufacturing

• Precision CNC machining

• Fast production and reliable delivery

Whether you need large diameter carbon fiber tubes or custom structural components, feel free to contact us.

Send us your drawings or project requirements, and our engineering team will provide a professional solution.

FAQ

1. What is considered a large carbon fiber tube?

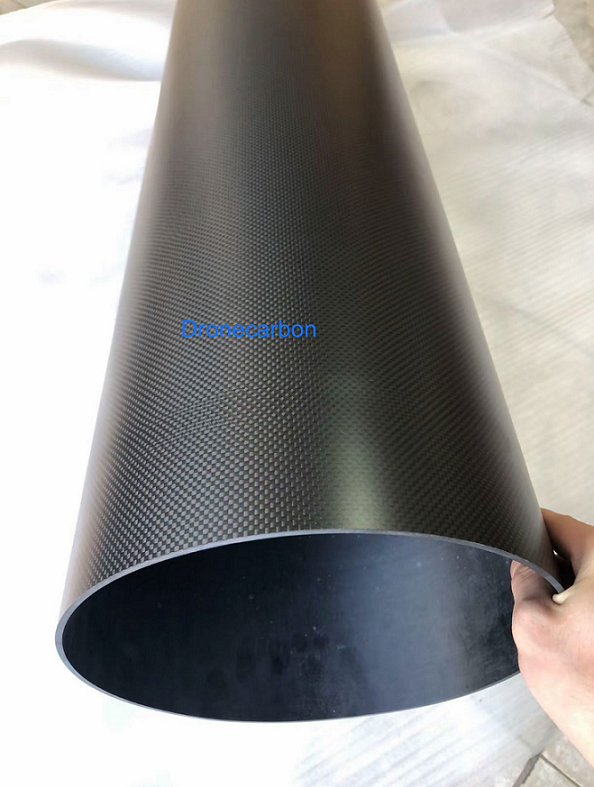

Typically, carbon fiber tubes with diameters above 100 mm are considered large. Industrial applications may require tubes up to 500 mm or more in diameter.

2. What industries use large carbon fiber tubes?

Large carbon fiber tubes are commonly used in:

• UAV drones

• Aerospace structures

• Robotics

• Industrial automation equipment

• Telescopic systems

3. Are carbon fiber tubes stronger than aluminum tubes?

Yes. Carbon fiber tubes offer higher stiffness and strength-to-weight ratio compared to aluminum, making them ideal for lightweight structural applications.

4. Can carbon fiber tubes be customized?

Yes. Manufacturers can produce custom carbon fiber tubes with specific diameters, lengths, wall thicknesses, and machining features according to customer drawings.

5. What is the maximum length and diameter of carbon fiber tubes you can produce?

Our factory can manufacture carbon fiber tubes up to 6 meters in length and 500mm diameters, depending on the specific design requirements.
