Carbon fiber tubes are renowned for their exceptional strength, light weight, and durability. Among the different types of carbon fiber weaves, twill and plain weaves are the most prevalent. Understanding their differences can help in selecting the appropriate type for various applications.

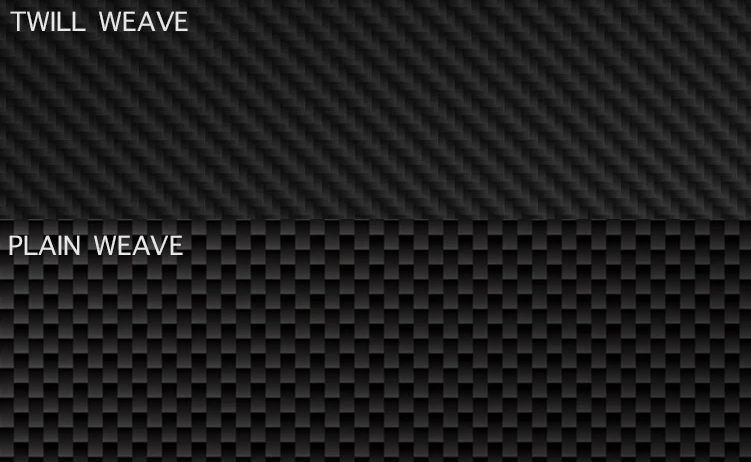

Weave Pattern:
Plain Weave: This weave features a straightforward over-under pattern resembling a checkerboard. Each warp fiber alternates over and under each weft fiber, resulting in a tightly interlaced structure. This high fabric stability makes the plain weave less flexible but more resistant to distortion, ideal for applications requiring high stability and minimal deformation.
Twill Weave: This weave has a diagonal pattern, where each warp fiber crosses over two or more weft fibers before going under one or more weft fibers, creating a distinctive diagonal ribbed texture. Twill weave is more flexible and drapes better over complex shapes, making it suitable for applications that require the material to conform to curves and contours.
Strength and Stiffness:
Plain Weave: The tightly interwoven structure of plain weave carbon fiber provides higher tensile strength and stiffness. It is more stable and less likely to shift during handling, making it ideal for flat panels and two-dimensional applications.
Twill Weave: Though not as stiff as plain weave, twill weave carbon fiber offers better impact resistance and is less prone to breakage under load. Its ability to distribute stress more evenly across the material makes it a preferred choice for load-bearing applications.
Flexibility and Formability:
Plain Weave: The rigidity of the plain weave makes it less adaptable to complex shapes. It works well for flat sheets, tubes, and minimal curves.
Twill Weave: The increased flexibility of the twill weave allows it to drape more easily over complex shapes and contours. This makes it highly suitable for automotive and aerospace applications, where components often have intricate designs.
Appearance:
Plain Weave: The symmetrical checkerboard pattern provides a clean, classic carbon fiber look. It is often chosen for aesthetic applications where a subtle and uniform appearance is desired.
Twill Weave: The diagonal pattern creates a more dynamic and visually striking appearance. It is commonly used in high-end products where visual appeal is significant. Many manufacturers prefer twill weave for its modern and aggressive look.
Market Availability:
Plain Weave: This weave is less common in the market compared to twill, but it is still widely used by specific brands that prefer its structural benefits. For example, Ferrari often uses plain weave carbon fiber for its automotive parts due to its high stability.
Twill Weave: Twill weave carbon fiber is more prevalent and is often the standard for many carbon fiber products, especially in the automotive and aerospace industries. Its widespread use is due to its appealing aesthetics and versatile performance characteristics.
Fiber Count and Strength:
The strength of a weave can be roughly determined by its fiber count. A higher fiber count generally indicates a stronger fabric. For example, a 300-tc (thread count) plain weave is roughly equivalent in strength to a 450-tc twill weave. This means that a 400-tc twill is likely stronger than an 800-tc plain weave, though the actual strength depends on the fiber type, construction method, and whether the weave is unidirectional (UD) or bidirectional.
Graphene and Composites: Carbon fiber can be combined with other materials like graphene, which is a single-atom-thick sheet of pure carbon known for its strength and stiffness. However, graphene is still expensive and not widely used in standard carbon fiber applications.
Applications:
Plain Weave: Suitable for applications requiring stability and minimal deformation, such as flat panels and tubes.
Twill Weave: Ideal for automotive and aerospace applications where the material needs to conform to complex shapes and curves.
In conclusion, both twill and plain weave carbon fiber tubes offer unique advantages tailored to specific needs. Plain weave provides higher stiffness and stability, ideal for applications with minimal curves. Twill weave, on the other hand, offers better flexibility and a visually appealing pattern, making it suitable for complex shapes and high-end aesthetic applications. Understanding these differences helps in selecting the most appropriate weave for your project.
