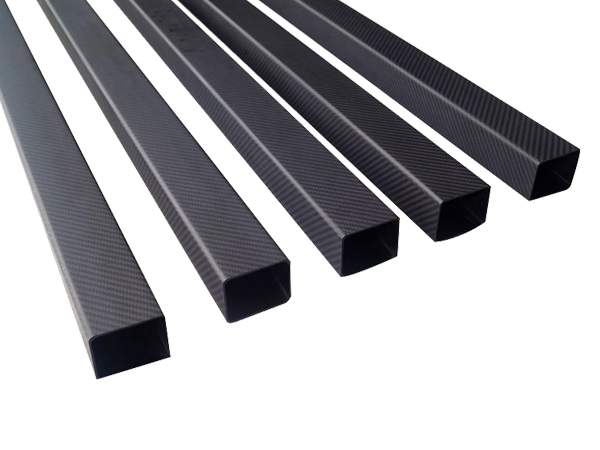

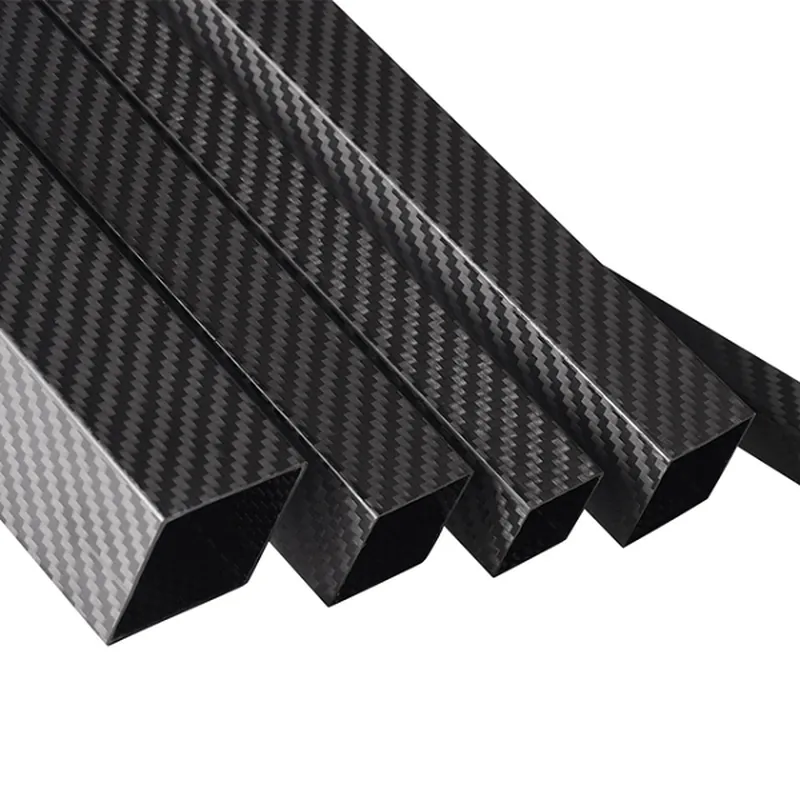

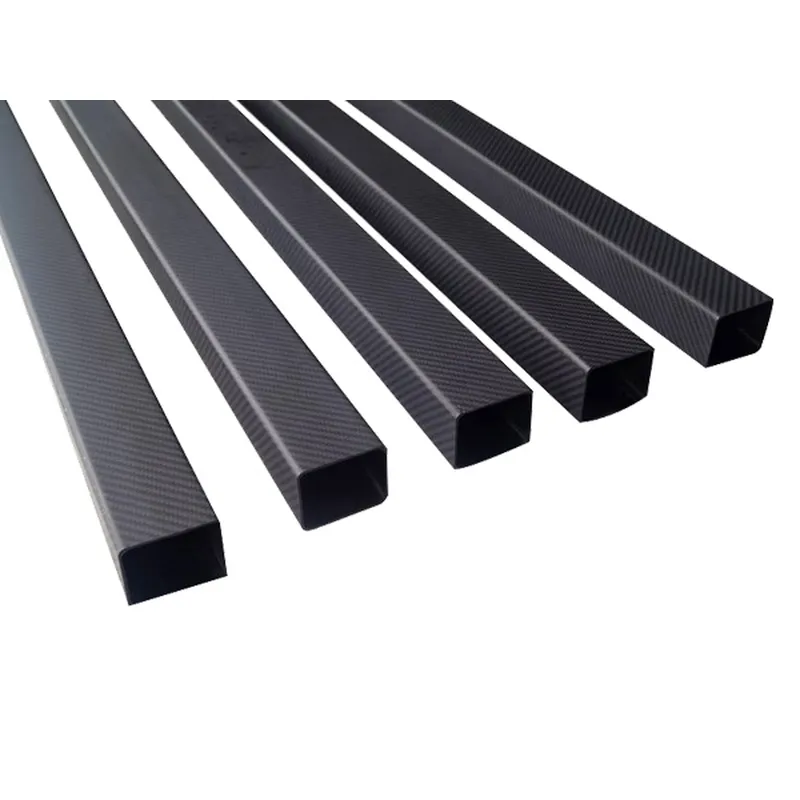

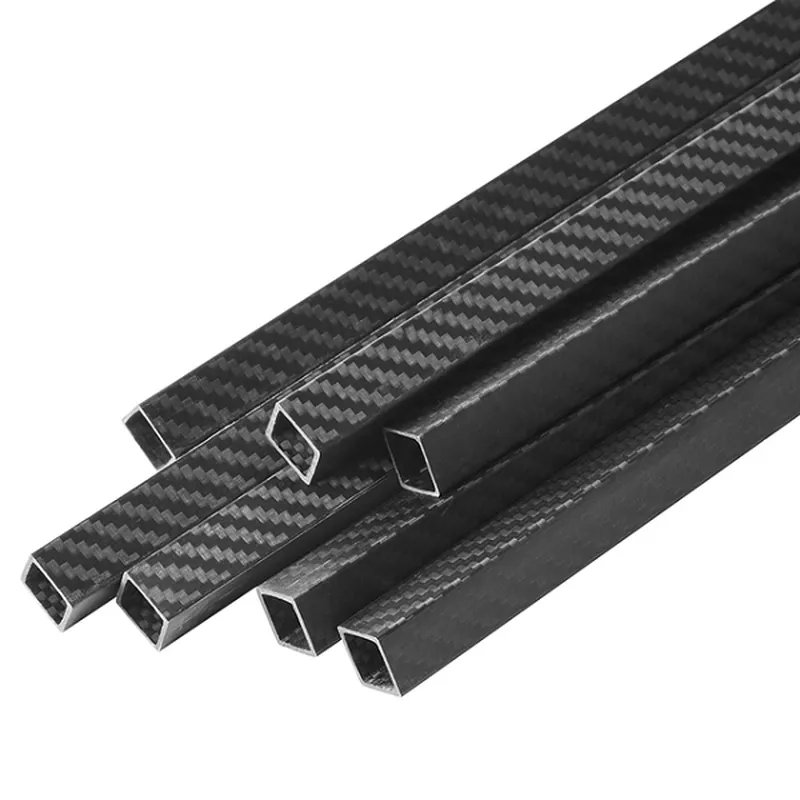

Unlike 3K Roll Wrapped 100% Carbon Fiber Round Tubes, square carbon fiber tubes usually require inner and outer molds to maintain precise internal and external dimensional tolerances. if customers don't have high requirements about inner tolerance, we will only open the outer mold to save the cost.
*The mold fee only needs to cost one time and the mold only belongs to you.
We have our own mold for the below size(no need to cost the mold fee)
If it doesn’t match your need, please contact us directly for your custom specifications.
| 10x10mm (Outer size, can support any thickness) |
| 15x15mm (Outer size, can support any thickness) |
| 20x20mm (Outer size, can support any thickness) |
| 25x25mm (Outer size, can support any thickness) |
| 30x30mm (Outer size, can support any thickness) |
Full Carbon Fiber tubes are widely used in the following applications:
Automation robotics
Telescoping poles
Packaging and specialized machines
Handling and Transport
FPV frame arm
Applications with low weight and high strength requirements
Tight tolerance and clean inner size
Our tolerance is about +/-0.2mm and the inner shape is very smooth
Stniff strength
All of our carbon tubes use roll wrapped process instead of pultrusion
One-stop service
Besides roll wrapped carbon fiber tubes, we also can supply CNC machining milling service.
We can machine the carbon fiber tubing according to the drawing.
Please send STEP format drawing so that our engineers can check the detail better

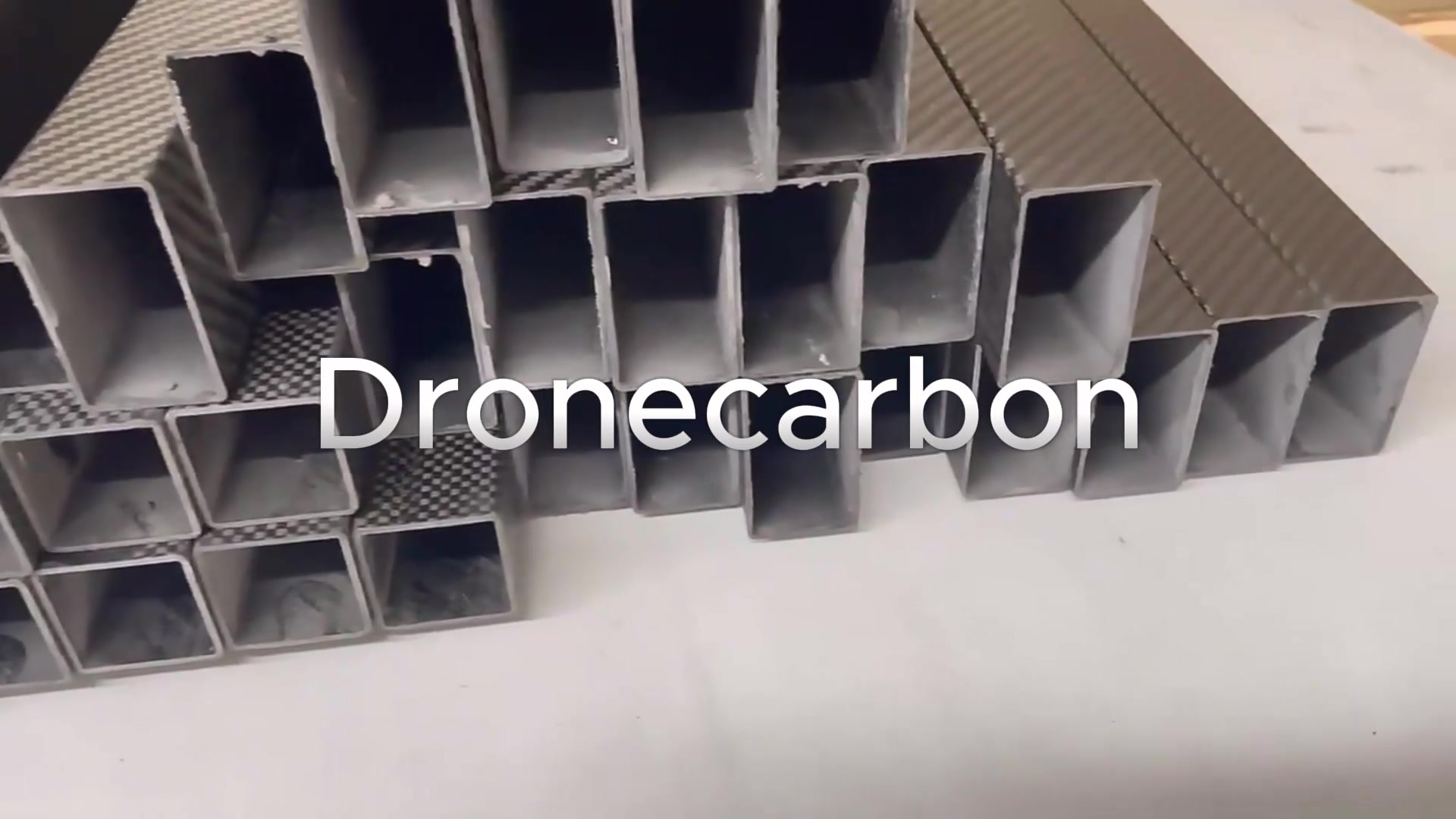

1. Customers reflected our carbon fiber square tubes' inner shape is clean and nice.
2. After customers test our sample, our customers confirm hundreds of tubes
3. Cooperation case
A customer refused to cooperate when i first time send the market email.
After testing our sample, he confirmed the mass production order with us.
4. Other feedback
It doesn't cost anything to send an inquiry. Why don't you send an instant inquiry to get the wholesale price?
