Our T700 Carbon Fiber Plates are engineered using Toray T700SC-12K carbon fiber, one of the most advanced reinforcement materials available, combined with high-performance epoxy resin systems. Manufactured through precision prepreg layering and autoclave curing, these plates deliver exceptional strength-to-weight ratios, making them ideal for industries where lightweight durability is critical.
✔ Ultra-High Tensile Strength (4900 MPa) – Superior to steel at a fraction of the weight
✔ Lightweight (1.78-1.82 g/cm³) – Up to 60% lighter than aluminum, reducing energy consumption
✔ Corrosion & Chemical Resistant – No rust, ideal for marine, aerospace, and industrial environments
✔ Low Thermal Expansion – Stable performance under extreme temperatures
✔ Customizable – Available in various thicknesses (0.1mm–50mm), weaves (3K twill, plain), and finishes (gloss, matte)

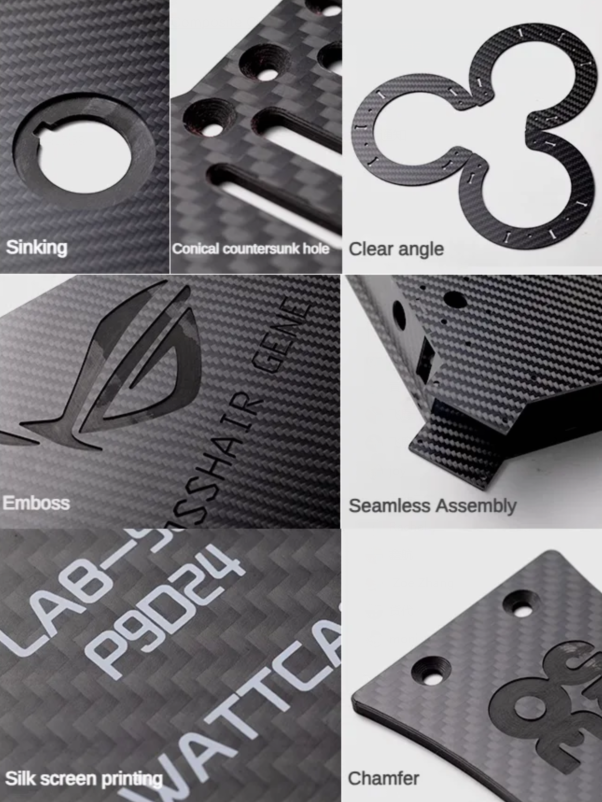

✔ Machining Options – CNC cutting, drilling, and edge finishing available
| Property | Specification |
|---|---|
| Fiber Type | Toray T700SC-12K Carbon Fiber |
| Resin Matrix | High-Temperature Epoxy (Customizable) |
| Tensile Strength | ≥ 4900 MPa |
| Tensile Modulus | 230 GPa |
| Density | 1.78-1.82 g/cm³ |
| Flexural Strength | ≥ 1800 MPa |
| Thermal Expansion | 0.5-2.0 × 10⁻⁶/°C |
| Max Operating Temp | 120°C (Higher grades available) |
| Standard Thickness | 0.1mm – 50mm (Customizable) |
| Surface Finish | 3K Twill, Plain Weave, Gloss/Matte |
| Flame Resistance | UL94 V-0 (Optional) |
Our T700 carbon fiber plates are trusted by engineers and manufacturers worldwide for:
Drone frames & UAV components
Satellite structural supports
Aircraft interior panels
Lightweight body panels & spoilers
EV battery enclosures
High-performance racing components
Robotic arm reinforcements
High-stress jigs & fixtures
Automated machinery parts
Bicycle frames & handlebars
High-end camera tripods
Luxury luggage reinforcements
✅ Premium Material Quality – Sourced directly from Toray T700SC-12K, ensuring consistent performance
✅ Precision Manufacturing – Autoclave-cured for maximum strength and minimal voids
✅ Custom Solutions – Tailored thickness, resin systems, and surface finishes
✅ Fast Turnaround – Prototyping and bulk orders available
✅ Competitive Pricing – High-performance at cost-effective rates
We offer full customization to meet your exact requirements:
✔ CNC Machining – Precision cutting, drilling, and milling
✔ Custom Thickness & Sizes – From ultra-thin sheets to thick structural plates
✔ Special Resin Systems – High-temp, fire-retardant, or impact-modified options
✔ Surface Treatments – Non-slip coatings, conductive layers, or aesthetic finishes
Request a Quote – Send us your CAD files (STEP, DWG) for a fast response!
T700 has higher tensile strength (4900 MPa vs. 3530 MPa) and better impact resistance, making it ideal for structural applications.
Yes! T700 is 5x stronger than steel at 1/5 the weight and 60% lighter than aluminum, with superior corrosion resistance.
Standard epoxy resin (120°C max temp), with options for phenolic (fire-resistant) or high-temp epoxy (180°C+).
Yes! We provide CNC cutting, drilling, and edge finishing for precise fitment.
Prototypes: 5-7 days
Bulk orders: 2-4 weeks (depending on quantity)
Yes! Free small samples for qualified business inquiries.
T700 offers the best balance of cost and performance. T800/T1000 have higher stiffness but are more expensive and often overkill for most applications.
Yes! We offer pre-treated surfaces for painting or can apply protective coatings.
Yes, but insulation coatings can be applied if needed.
Aerospace, automotive, drones, robotics, and high-end sports equipment are the biggest users.
