Carbon fiber is the material of choice for many high performance industries because of its superior strength to weight ratio, stiffness and corrosion resistance.
Carbon fiber parts are often selected for lightweight robotic structures and industrial equipment, racing components and electronic products where weight reduction and structural performance is critical.
But producing carbon fiber parts is more than just cutting the right shape.
In many applications it appears that the real problem is in assembly.
A carbon fiber part could have:
*Outer profile is correct
*Correct material thickness
*Good surface finishing
But if the hole positions are not properly controlled then the final assembly can still fail.
The screws may not match.
There may be several components that don't fit.
The structure may be put under undue strain after installation.
That is why hole position tolerance in carbon fiber assembly is not just a drawing requirement. It is an important factor affecting the assembly efficiency, structural reliability and final product performance.
Carbon fiber composites have an anisotropic laminated structure compared with metal parts. Their mechanical behavior is a function of the fiber direction, the laminate design and the load distribution .
Unlike aluminum or steel, carbon fiber does not plastically deform, so it cannot always be “forced into position” if it is misaligned during assembly. Instead, large installation stresses may be imparted directly into the composite structure.
Therefore, for CNC carbon fiber parts, it is important to control the hole position according to the requirements of the drawing and the conditions of the assembly.
The mounting hole may sound like a simple machining feature, but in many carbon fiber applications it also serves as a positioning reference.
When multiple components are put together to define the final assembly accuracy, each hole matters.
Poor hole position control can cause many problems.
The most obvious problem is that the pieces may not fit together the way you expect.
For example, suppose you have to mount a carbon fiber plate to another plate or a metal bracket. If the holes are not properly spaced, it can lead to:
*Hard to screw in
*Forced installation
*Unequal contact between the parts
*Further adjustment work
Where precision assemblies are concerned, small deviations can become significant when there are many points of connection.
If a part doesn’t naturally fit, the installers can sometimes force it into place during assembly.
This results in undesirable pre-load stress around:
*Hole for mounting
*Composite Interfaces
*Fasteners
Carbon fiber is a composite material . It is layered . Too much local stress can help with :
*Cracking of Matrix
*Damage to fiber
*Delamination Risk
An error in the position of one hole may not be a problem.
But when a part has many holes, the accumulated positional variation can impact the entire part.
This is particularly important for:
*Composite assemblies large
*Robotic constructions
*Mounting plates, electronic
*Mechanical Coupling
The more connection points a product has, the more important it is to have consistent CNC machining.
Let’s examine three different industrial sectors to understand the real cost of tight vs. loose tolerances, and how precise carbon fiber drone center plate machining, carbon fiber tube drilling tolerance, and CNC carbon fiber keyboard plate precision affect them.

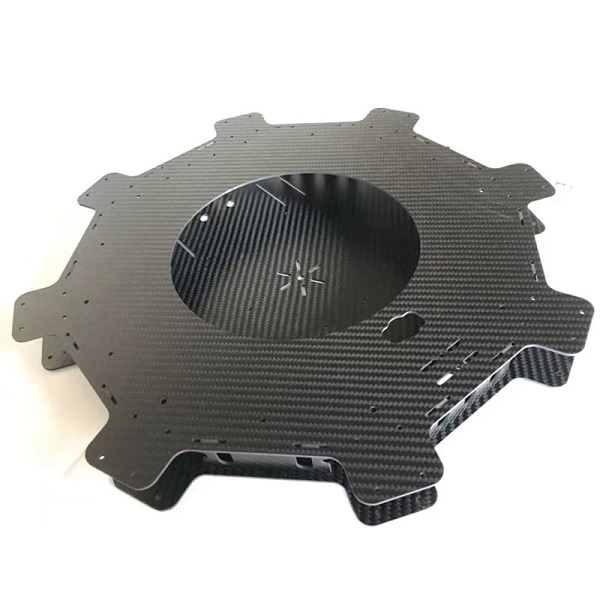

Core Pain Point: In a multi-piece carbon fiber drone frame, the position of holes must be aligned to avoid mechanical binding when interlocking, and to avoid structural looseness under high-frequency flight vibrations.
Large industrial drones use complex multi-layered carbon fiber center plates and interlocking frames. This kind of assembly needs several carbon fibre pieces to mesh together with dozens of fastening points perfectly lined up on different plates.
If the hole position tolerance is not maintained to the extreme limits, the assembly technicians face two major issues. Either the parts bind mechanically (interlocked slots cannot be joined without filing or forcing) or the gaps are too loose creating micro-play. This micro-play translates into a high frequency vibrational shock during high speed flight manoeuvres and sudden gusts of wind. Over time the load distribution is not even , and the center plate fatigues , cracks or fails catastrophically in mid-air. Tight center distance control between holes to holes ensures true zero-stress interlocking and prolongs drone operational life.

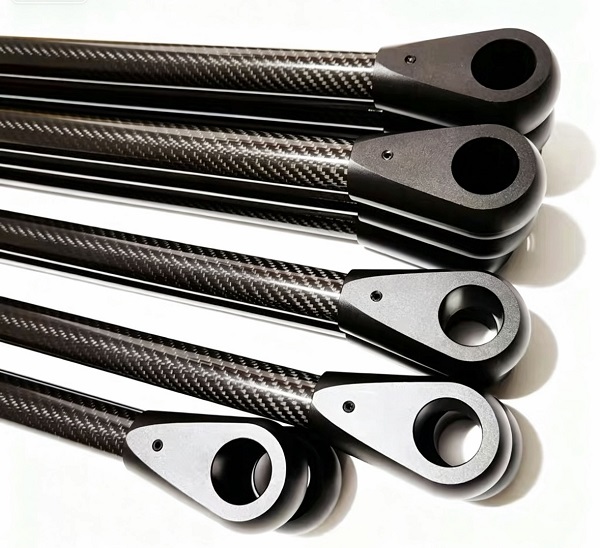

Core Pain Point: Correct hole placement on carbon fiber tubes prevents thermal expansion mismatch and interlaminar shear when mating composites to CNC aluminum joints.
As structural arms for high-speed automation and robotics, lightweight carbon fiber tubes and precision aluminum joints, produced by CNC machining, are frequently employed.
This is also a big engineering challenge. Carbon fiber and metal have very different coefficients of thermal expansion. However, if the two mounting holes on a carbon fiber tube are even slightly out of tolerance, the fasteners will impose severe pre-load installation stress. The interior of the composite is attacked by the stress of forced assembly as the robotic arm undergoes rapid acceleration, deceleration and heavy cyclic payloads. It quickly starts delamination (layer separation) around the hole walls and can shear the mounting hardware entirely. Reliable carbon fiber tube drilling tolerances ensure that aluminum-to-composite joints share loads evenly, without localized micro-fractures.
Core Pain Point: Elimination of sub-millimeter cumulative errors across dozens of micro-holes ensures perfect alignment of the switch and prevents PCB warping during high-density assembly.
The carbon fiber switch plate offers unmatched rigidity and a clean acoustic profile for enthusiasts and industrial customers building premium mechanical keyboards. But these plates have dense arrays of interlocking cutouts and slots for mounting switches.
Poor positional accuracy in a CNC milling operation can easily lead to accumulated error of over 0.1mm at the edge of the board in a 60% or 100% layout. This little drift means that mechanical switch pins will not line up smoothly with the underlying Printed Circuit Board (PCB). This forces assemblers to either bend the switch pins or warp the PCB to get it to fit. The result is damaged electronic components, inconsistent tactile feel, and structural tension throughout the entire keyboard chassis. Precision Advanced CNC Carbon Fiber Keyboard Plate Each switch seats itself vertically and effortlessly.
Achieving reliable hole position tolerance requires more than simply drilling holes according to CAD data. Because carbon fiber composites possess unique physical characteristics compared to traditional metals, maintaining steady dimensional accuracy—such as a dependable tolerance of ±0.1mm—involves a comprehensive approach from engineering preparation to final machining.
A professional carbon fiber CNC machining process typically involves several key factors:
The foundation of accurate hole placement begins with clear manufacturing information.
For Standard 2D Machining: DXF or DWG files are usually suitable for basic planar hole patterns.
For Complex Interfaces: Parts requiring countersinks, counterbores, chamfers, multi-side machining, or integrated hardware often benefit from STEP files, which provide full three-dimensional geometry.
Clear engineering drawings help manufacturers understand not only the exact hole coordinates, but also the functional purpose of each feature within the broader assembly.
Carbon fiber requires different machining considerations than metals to avoid fiber fraying or edge damage.
Diamond-Coated and Compression Tooling: Standard metal-cutting tools can cause surface wear and fiber pull-out. Professional facilities utilize multi-axis CNC routers equipped with specialized diamond-grit or compression cutters designed to shear composite fibers cleanly at appropriate RPMs.
Process Parameters: Maintaining stable workholding, appropriate feed rates, and correct drilling methods helps protect the surrounding laminate structure while keeping hole locations precise.
In many mechanical assemblies, the carbon fiber part is only one piece of a larger system. Achieving proper fit requires looking at the entire relationship between carbon fiber dimensions, metal components, fasteners, and final assembly requirements.
Complementary Hardware Fit: Precision manufacturing must account for complementary hardware chains—such as ensuring exact pocket depths, counterbores, and hole sizing when installing press-fit nuts or threaded inserts into CNC-machined panels.
Assembly Alignment: When hole positions and secondary installation points are accurately controlled within standard manufacturing ranges (such as ±0.1mm), it helps prevent forced installation stresses, protects the composite matrix from cracking when hardware is pressed or torqued, and supports smooth, reliable integration during final assembly.
For carbon fiber CNC parts, hole position tolerance is not just a number on a technical drawing.
It represents the relationship between design, manufacturing, and final assembly.
A carbon fiber component can only deliver its intended performance when every connection point works together correctly.
Whether the application involves structural composite parts, robotic components, or precision carbon fiber plates, accurate hole positioning is one of the foundations of reliable assembly.
If you are developing a custom carbon fiber component that requires precise hole positioning and reliable assembly, send us your DXF, DWG, or STEP drawing.
Our engineering team can review your requirements and discuss suitable CNC machining solutions before production.
