When designing high-performance components out of composite materials, engineers often focus heavily on the choice of weave, resin system, and overall laminate thickness. However, one critical geometric parameter is frequently overlooked during the CAD modeling stage: edge distance.
In carbon fiber CNC machining, edge distance—the clearance from the center of a hole, slot, or cutout to the outer perimeter of the part—plays a definitive role in structural integrity. Whether you are designing heavy-duty drone arms, multi-axis robotics components, or high-vibration RC vehicle chassis, ignoring proper edge margins can lead to catastrophic assembly failures, delamination, and costly redesign loops.
This guide explores the mechanical mechanics of edge distance, common failure modes, and practical design rules to ensure your custom carbon fiber CNC parts perform reliably in the field.
Edge distance is formally defined as the distance measured from the center of a fastener hole (or the tangent edge of an internal cutout/slot) to the nearest unconstrained edge of the part.
Unlike homogeneous metals like aluminum or steel, which exhibit isotropic properties and can undergo local plastic deformation to redistribute peak stresses, carbon fiber reinforced polymers (CFRP) are anisotropic. Their strength is directionally dependent on the orientation of the carbon fibers. When a fastener applies a load near an edge, the stress cannot be easily mitigated by yielding; instead, it transfers directly onto the resin matrix and fiber bundles, making edge proximity a critical limiting factor for load capacity.
Failing to maintain an adequate safety margin between holes and part edges introduces three primary structural risks:
l Shear-Out and Edge Breakout: When a bolt is subjected to tension or shear parallel to the edge, the material between the hole and the perimeter can shear completely through, causing the fastener to tear out of the part.

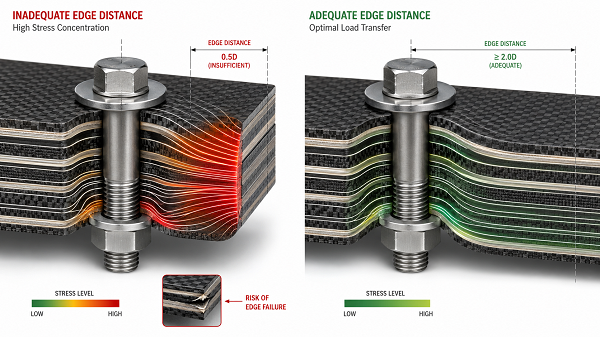

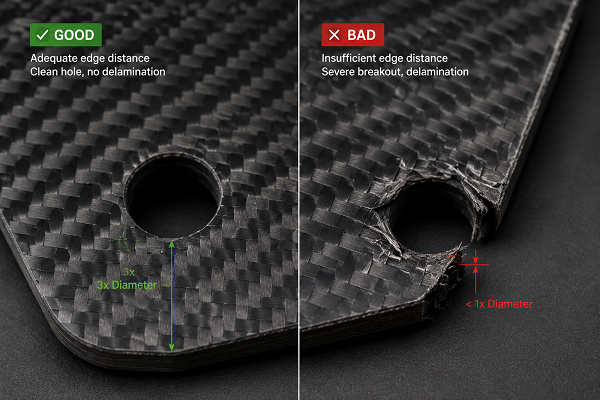

l Layer Delamination: Drilling, countersinking, or applying mechanical preload too close to an edge creates localized interlaminar stresses. This causes the individual plies of the carbon fiber laminate to peel apart, destroying the structural cohesion of the component.
l Bearing Strength Reduction: The ability of a hole to bear a heavy clamping load (bearing strength) drops drastically when the edge distance is too narrow. The fastener will warp or crush the inner wall of the hole long before reaching its design torque limit.
To prevent structural failure during assembly or field operation, follow these industry-standard rules of thumb when creating your CNC production drawings:
l The 2D Rule (Minimum Benchmark): As a general rule of thumb for standard structural plates, maintain a minimum distance of 1.5 to 2.0 times the fastener diameter ($D$) from the center of the hole to the edge. For instance, an M4 bolt hole should maintain a center-to-edge distance of at least 6mm to 8mm.
l Application-Specific Adjustments:
High-Vibration Environments (Drones & Robotics): Increase edge margins toward the higher end (2.0D or greater) to absorb continuous fatigue cycles and impact shock without loosening.
Thin-Walled or Space-Constrained Parts (Mechanical Keyboards & Simulator Peripherals): If spatial limits force a tighter design, consider upgrading the laminate thickness, switching to a high-modulus carbon fiber weave, or reinforcing the area with integrated metal hardware.
l DFM (Design for Manufacturing) Considerations: Collaborating closely with your CNC machining partner ensures that tool entry and exit points during profiling and pocketing do not chip or fracture delicate near-edge perimeters.
Proper edge distance calculation directly impacts the reliability of components across demanding industries:
l Unmanned Aerial Vehicles (UAVs): Drone motor mounts and frame arms experience violent, high-frequency vibrations. Insufficient hole margins near motor mounting patterns often result in sudden arm fractures mid-flight.
l Industrial Robotics: Robotic gripper fingers and dynamic linkage arms rely on secure press-fit nuts or bolted joints near tight corners. Maintaining proper edge clearance prevents joint slop and premature wear.
l RC Motorsports & Simulators: Steering wheel faceplates and chassis brackets undergo aggressive torsional forces. Adequate edge margins prevent stress concentration fractures around button cutouts and mounting slots.
Optimizing edge distance is a straightforward yet vital step in preventing part failure, eliminating costly prototype redesigns, and ensuring long-term product reliability. By respecting the anisotropic nature of composite materials early in the CAD design phase, you secure both structural performance and assembly efficiency.
